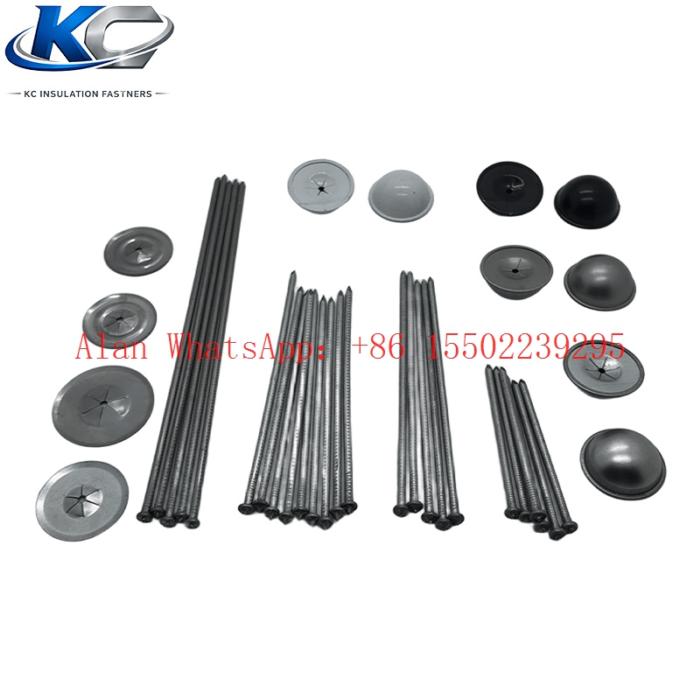

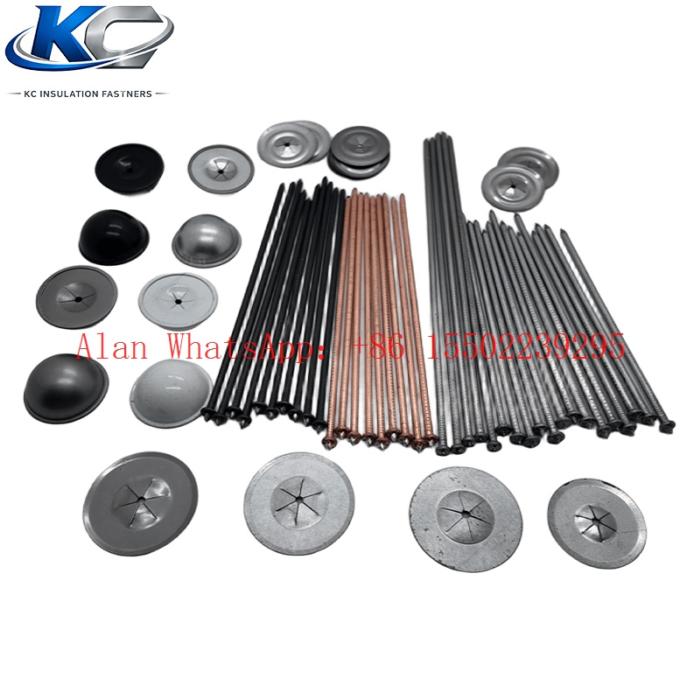

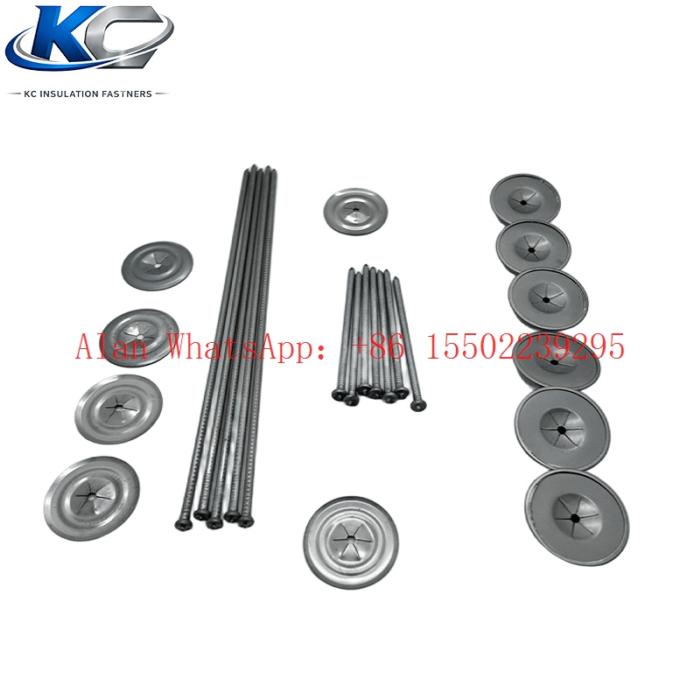

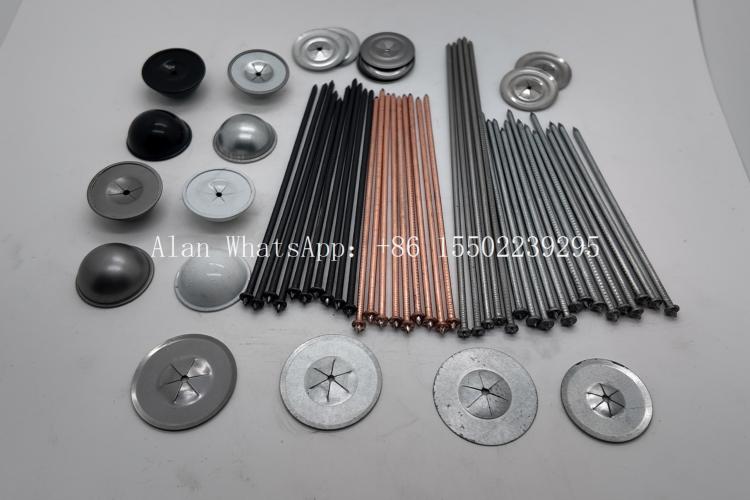

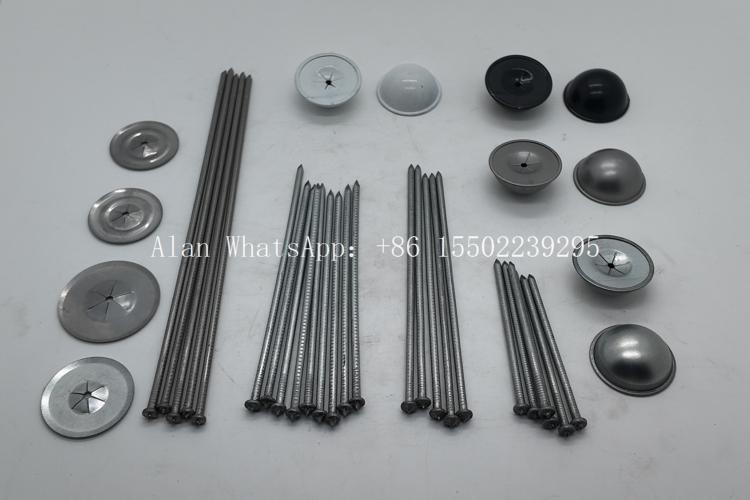

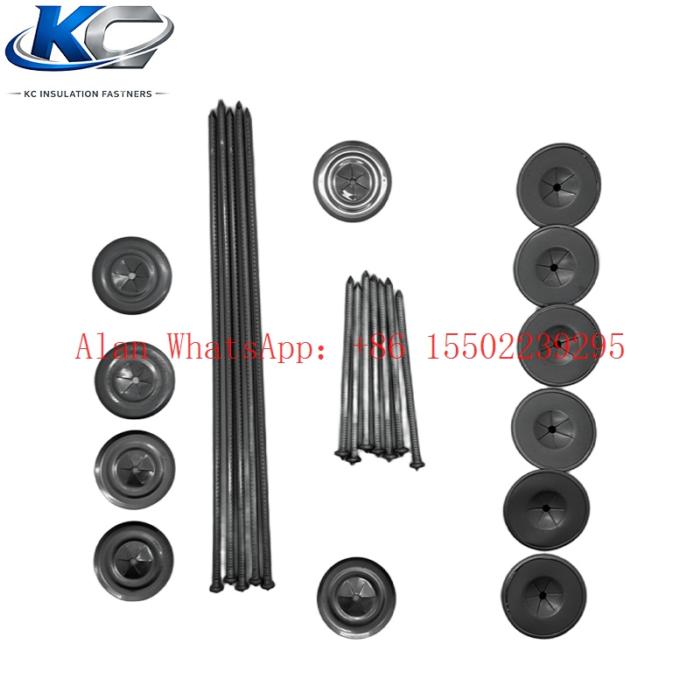

304 Stud Welder Draw Pins for Industrial and Marine Insulation Black dome cap

Stud welder draw pins are precision-engineered fasteners designed for securely attaching insulation materials to metal surfaces in industrial and marine applications. Installed using CD or stud welding machines, these pins provide strong, permanent attachment, ensuring insulation remains stable under vibration, high temperatures, and corrosive conditions.

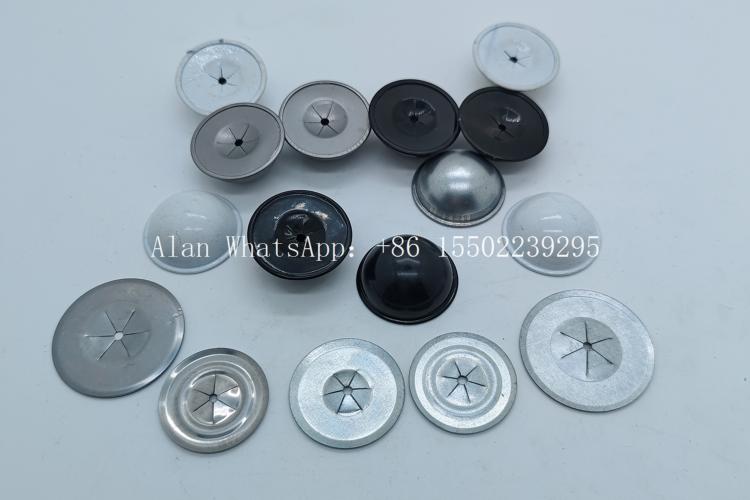

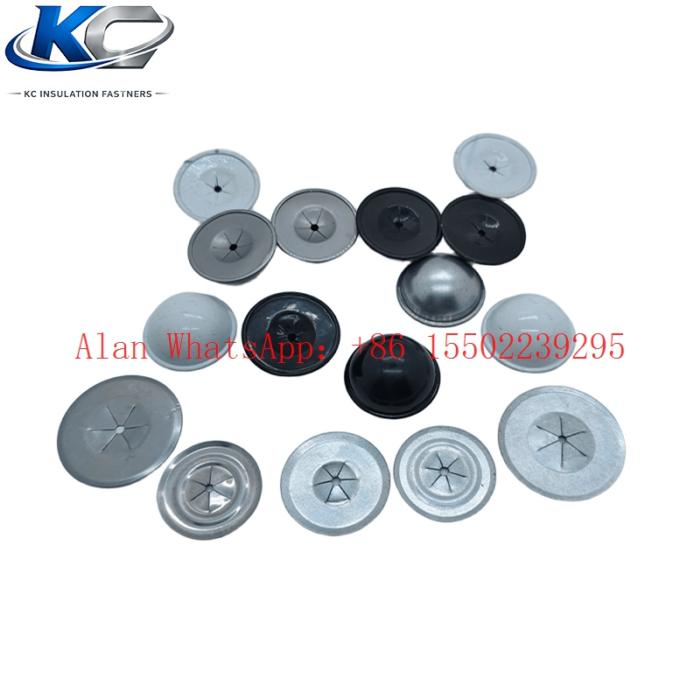

After welding, insulation is mounted on the pin and held in place with a self-locking washer, providing long-term stability and preserving thermal efficiency. Stud welder draw pins are widely used in shipbuilding, industrial HVAC systems, pipelines, power plants, and other heavy-duty insulation projects where reliability is essential.

Material Options & Advantages

Our stud welder draw pins are available in high-quality materials tailored for demanding environments:

• Copper-Plated Steel – Excellent corrosion resistance, ideal for marine applications

• Zinc-Plated Steel – Cost-effective solution for general industrial insulation

• Stainless Steel 304 / 316 – Durable and corrosion-resistant for harsh environments

• Custom Materials – Available upon request for specialized applications

Each pin is manufactured under strict quality control to ensure consistent dimensions, weldability, and holding strength. Custom lengths, diameters, and base types can be provided for specific project requirements.

Specifications

• Pin length should exceed insulation thickness for secure self-locking washer installation

• Standard nail point, with blunt end available as a special order

• Compatible with all standard CD and stud welding machines

Additional Notes:
These stud welder draw pins are engineered for maximum performance in industrial and marine environments. Correct welding ensures strong attachment, reduces insulation detachment, and maintains long-term stability. Custom base types and lengths are available for specialized insulation systems.

Applications

• Marine insulation, including engine rooms and ship decks

• Industrial wall, roof, and tank insulation

• HVAC systems for industrial and marine facilities

• Power plants, petrochemical, and chemical processing insulation

• High-temperature or vibration-prone industrial equipment

Using stud welder draw pins ensures insulation remains firmly attached, preserving structural integrity and reducing maintenance requirements. Their compatibility with CD and stud welding machines makes them ideal for large-scale marine and industrial insulation projects.

Manufacturer with OEM & Stable Supply

KC Insulation Pin provides factory-direct pricing, stable production capacity, and OEM/ODM services for stud welder draw pins. Bulk orders, custom sizes, and packaging solutions are available to meet international marine and industrial project requirements. Choosing our stud welder draw pins guarantees high-quality, reliable fastening solutions for insulation systems.
